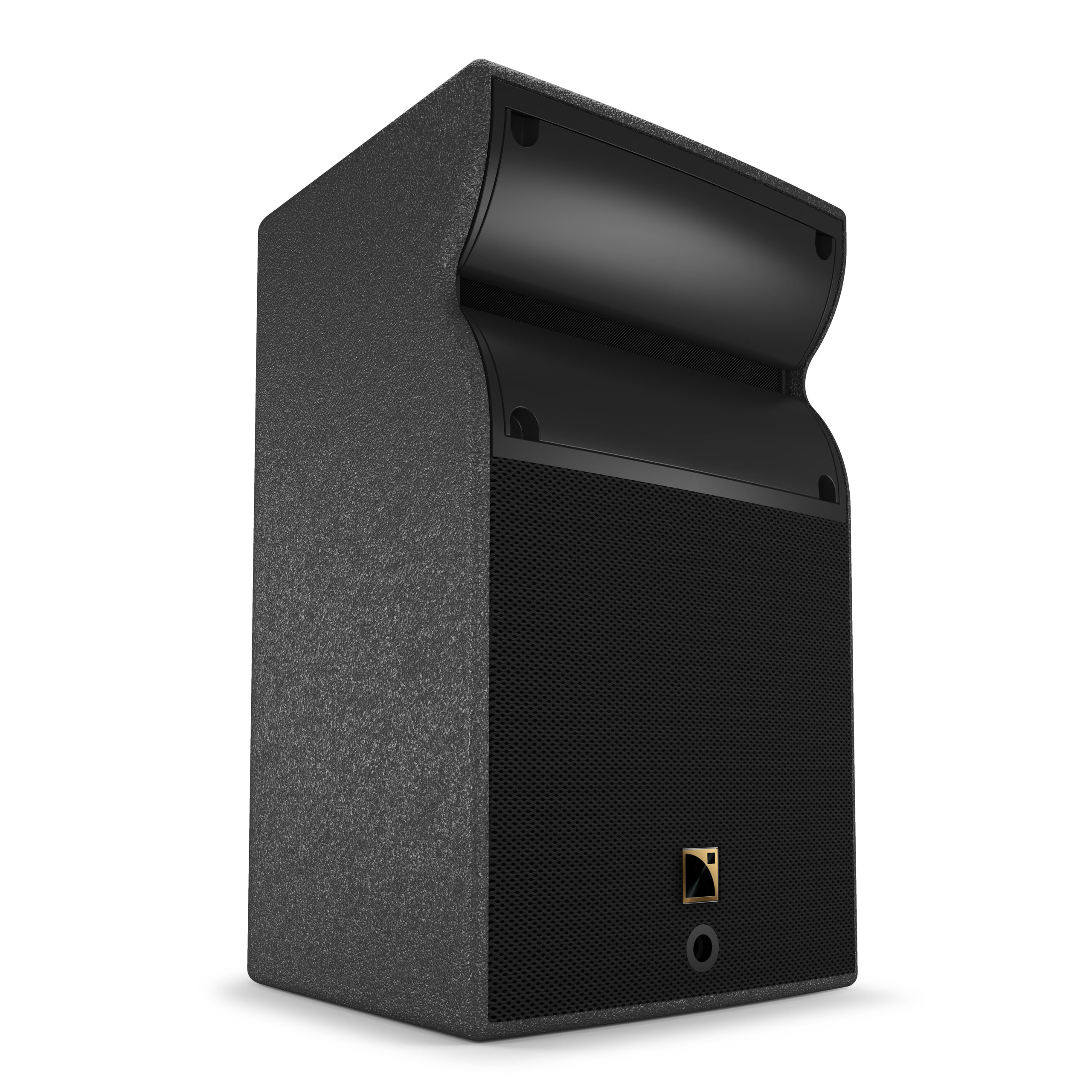

A10i Focus

ביצוע מירבי תוך שמירה על דיסקרטיות
רמקול 2-WAY פסיבי, 10 אינץ'
להתקנות קבע

קטגוריות A-10i, סדרת A

2-way passive constant curvature WST® 10° enclosure (installation version) amplified by LA2Xi / LA4X / LA8 / LA12X

Electroacoustic specs

Usable bandwidth (-10 dB)	66 Hz – 20 kHz ([A10])
Maximum SPL¹	140 dB ([A10]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X 136 dB ([A10]) with LA2Xi
Nominal directivity (-6 dB)	Enclosure: 10° L-Fins: 70° / 110° symmetric or 90° asymmetric
Transducers	LF: 1 × 10″ cone driver HF: 1 × 2.5″ diaphragm compression driver, neodymium
Acoustical load	LF: bass-reflex, L-Vents HF: DOSC waveguide, Panflex
Nominal impedance	8 Ω

¹ Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Connectors	1 × 4-point terminal block with push-in connection 1 × connector sealing plate with cable gland
Rigging and handling	external rigging kits M6 inserts for rigging plates M8 inserts for A-U10i 4 M6 inserts for rigging accessory 1 DIN580-compatible M8 threaded insert
Weight (net)	19 kg / 42 lb
Cabinet	premium grade Baltic beech and birch plywood
Front	coated steel grill acoustically neutral 3D fabric
Finish	dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
IP	IP55
