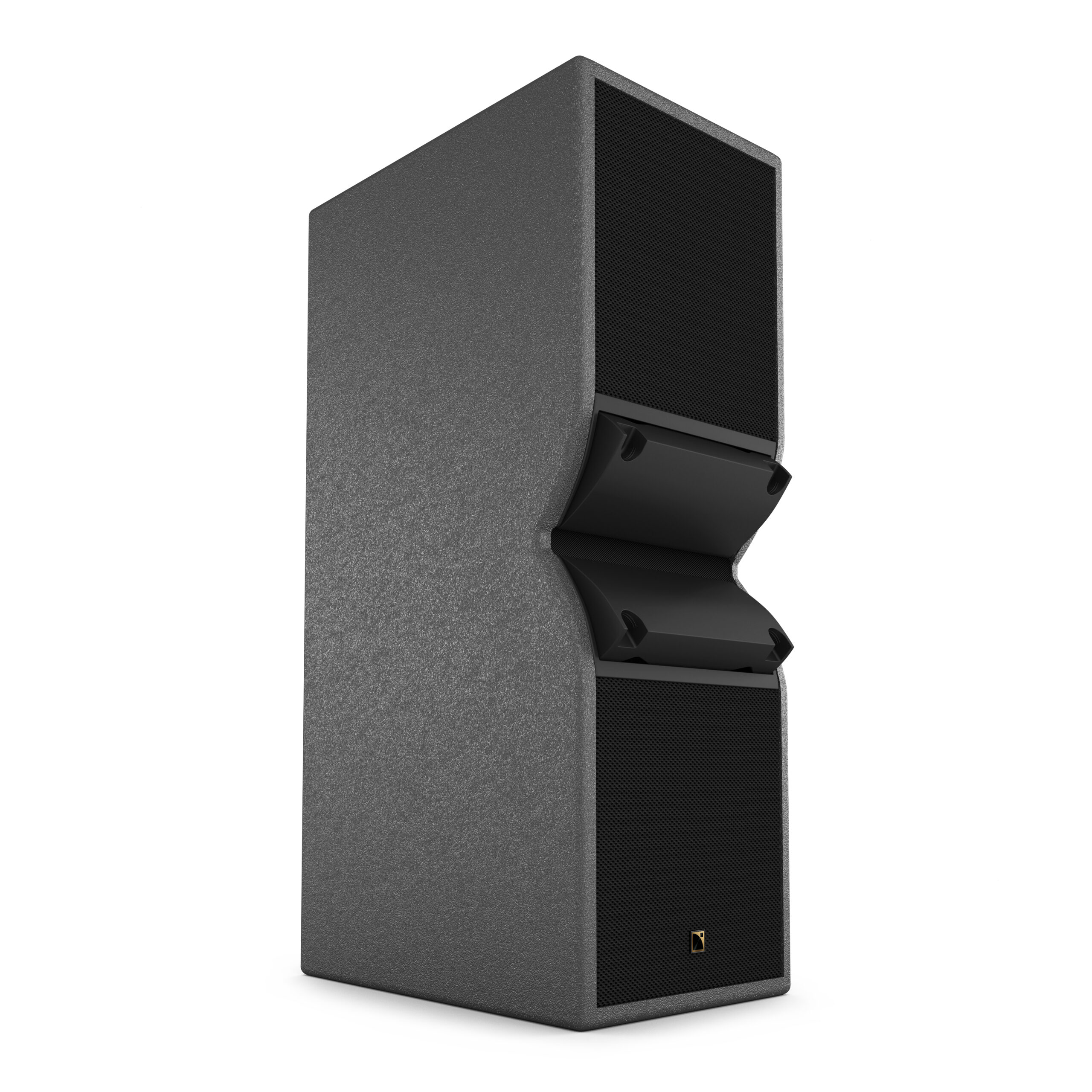

KARA IIi

יָעִיל

The dawn of a new KARA

2-way active, dual 8"

קטגוריות סדרות Line Array, סדרת K

2-way active WST® enclosure (installation version) amplified by LA2Xi / LA4X / LA8 / LA12X

Electroacoustic specs

Usable bandwidth (-10 dB)	55 Hz – 20 kHz ([KARA II 70])
Maximum SPL¹	142 dB ([KARA II 70]) with LA4X / LA8 / LA12X 137 dB ([KARA II 70]) with LA2Xi
Nominal directivity (-6 dB)	horizontal: 70° / 110° symmetric or 90° asymmetric vertical: dependent upon the number of elements and the line source curvature
Transducers	LF: 2 × 8″ neodymium cone drivers HF: 1 × 3″ neodymium diaphragm compression driver
Acoustical load	LF: bass-reflex HF: DOSC waveguide, Panflex
Nominal impedance	LF: 8 Ω HF: 8 Ω

¹ Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).

Connectors	2 × 4-point terminal block with push-in connection

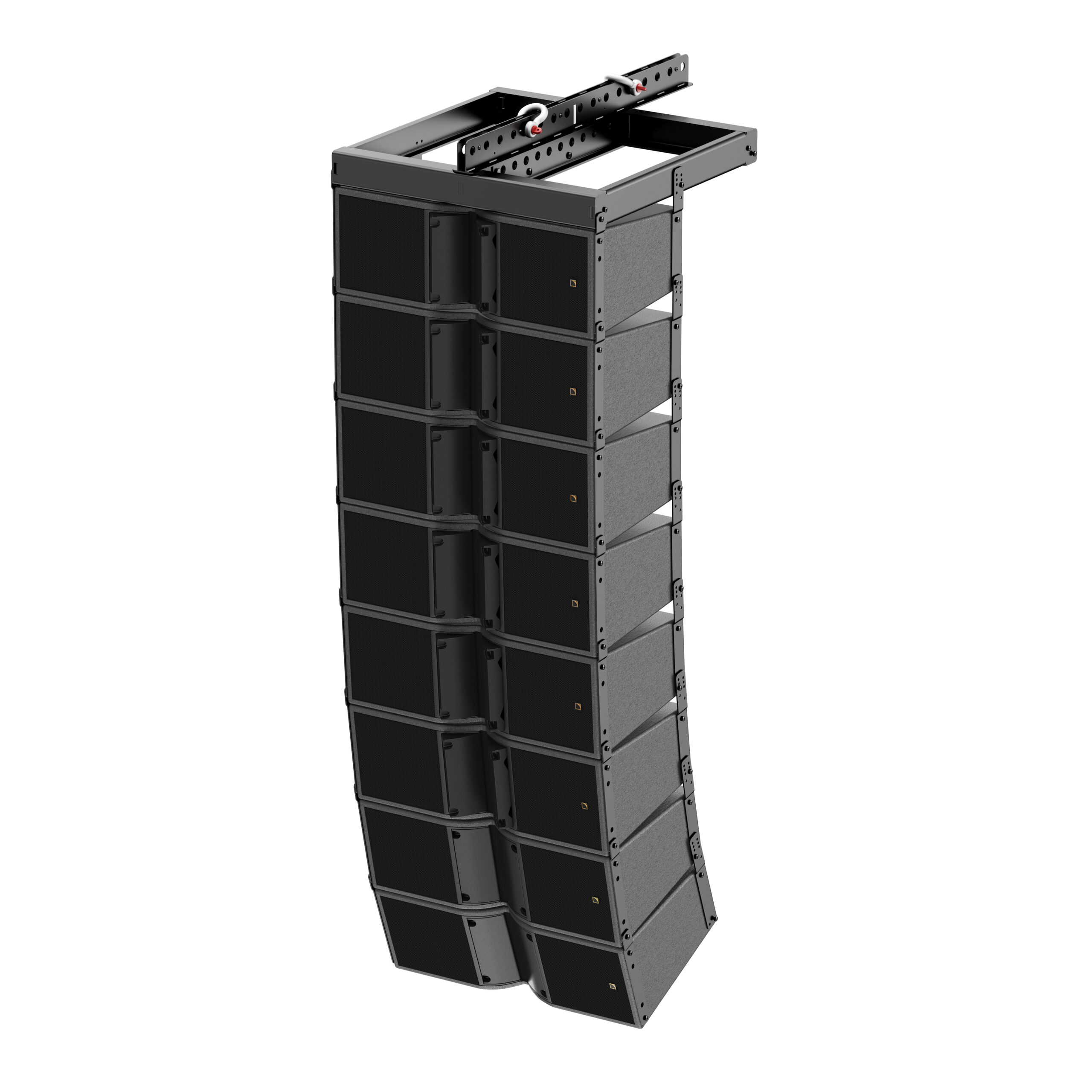

Rigging and handling	external rigging kits inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Weight (net)	21 kg / 46 lb
Cabinet	premium grade Baltic birch plywood
Front	coated steel grill acoustically neutral 3D fabric
Finish	dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
IP	IP55
